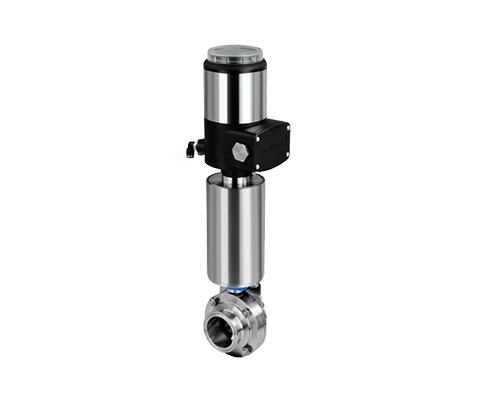

Pneumatic butterfly type ball valve

Application

●Pneumatic butterfly type ball valve can be installed in pipeline and equipment with process controller, such as food, beverages, wine, dairy products, pharmaceutical and other high technology requirements of the pipeline.

Design Features

●Size：1"-4",DN25-DN100
●Material ：304/1.4301，316L/1.4404
●Max. temperature：-30℃ - 130℃
●Max. pressure: Vacuum to 10bar
●Small torquemoment
●Excretable(Washable CIP) (option)
●Handle can be installed on the side of the valve body, no matter what the flow direction is.
●Valve body can be replaced in any connections. And the length will not change.
