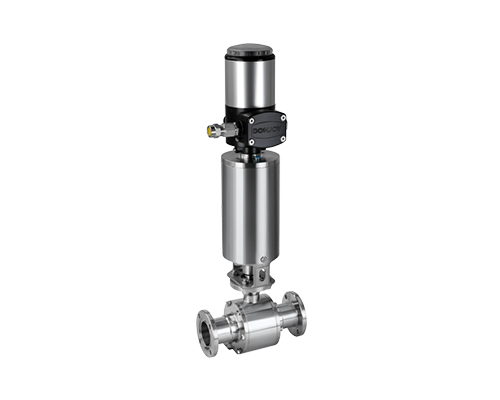

Proportional regulating ball valve

Proportional regulating type ball valve

Proportional regulating ball valve with a variety of structures, such as 3way, straight way, butterfly design, no dead angle design, can be applied to work in high requirements of clean environment, such as pharmaceutical, food and beverage, wine, chemical industry etc. The ball valve meets operating temperature up to 150℃, pressure up to 10bar, innersurface roughness Ra0.5 μ m and 3A standards and ASME BPE high purity requirements

Design Features

Signal Input：0/4-20mA，0-5/10V
Signal feedback output：0/4-20mA，0-5/10V
Supports bus：DEVICE NET BUS
Support manual operation
Single key self-tuning function
Power Supply：DC 24V ±10%
Size： 1/2"-4",DN10-DN100
Temperature：-30 ℃-150℃
Pressure：10bar
Material：304/1.4301,316L/1.4404
Surface：Ra≤0.5μm
Gaskets:FDA 177.1550
Connection : Clamp, weld, thread,DIN，SMS，ISO，IDF，BPE，RJT
No matter what the connection mode is, the valve body can be replaced
Certificate：3-A-68-00，PED/97/23/EC
