Weld Combined Multi port Diaphragm Valve

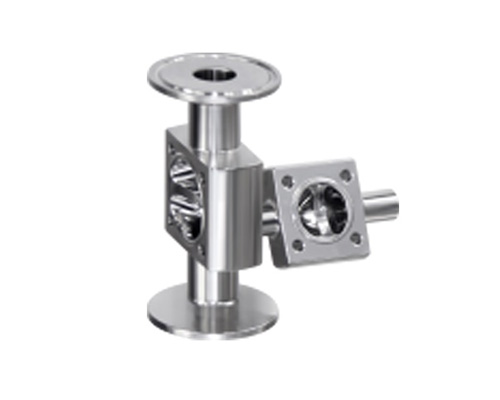

Welding Combined Multiport Diaphragm Valve

●GMP valve
Mainly used in high pure water or other distribution system of water point vertical tube which can effectively reduce pipeline deadleg. One valve is placed in a horizontal position to keep an angle of emptying, the other, a host valve, need be placed vertically. The outlet is a no bacterial breeding or process cross infection sample mouth when the valve opens.
●SAP valve
Mainly used in a horizontal pipeline system,  host valve is placed in a horizontal position to maintain a certain self-emptying angle. The passage hole is in the lowest discharge point of the host valve waterway.

Technical Specifications

Size: 1/2"-4", DN6-DN100
Material: 316L/1.4404，1.4435 NB2 Fe＜0.5%
Temperature: -20℃ +150℃
Pressure: 10bar
Inner Surface Treatment: Ra0.4μm, Mechanical polishing, Electro polishing
Diaphragm: Double diaphragm: EPDM+PTFE; Single Mdiaphragm: EPDM, FPM, Silicon
Operating: Manual/ Pneumatic
Control: configurable, 1) Control Unit C-TOP, 2) positioner IL-TOP, 3) mechanical valve regulator, 4) Position Sensor
