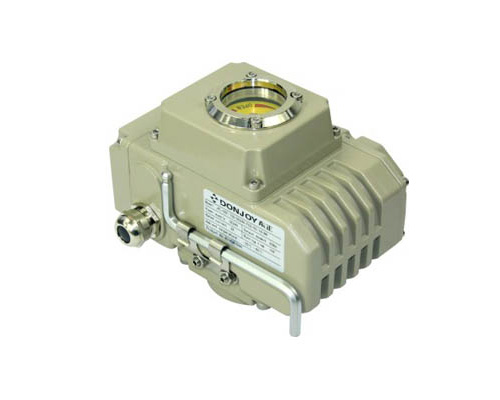

Electric Actuator

Electric Actuator
Electric Actuator
Electric Actuator
Electric Actuator
Electric Actuator
Electric Actuator

Electric Actuator

Options

◎ standard connection type (type B) causes circuit-switched on / off valves with outputing active contacts signal to show a fully open or completely closed state of the valve.
◎ Passive contact type (type S) causes the circuit switched on / off valves with outputing passive signal contacts to show a completely open or completely closed state of the valve.
◎ With type of position signal (type K) it makes the valves on / off by circuit switching with outputing current signal corresponding to the valve on / off angle.
◎ Opening grade signal type (R type) controls the open angle valves by circuit switching, meanwhile output potentiometer signals outputs corresponding to the open angle valve.
◎ type of intelligent modulation (type A) realizes intelligent regulation and control by receiving a standard 4-20mA.DC, 0-10V.DC or 1-5V.DC output signal from the computer or the industrial instrument, as well as the 4-20 mA outputs. DC standard feedback signal.

Technical characteristics

Power: DC 24V AC 110V 220V
Opening and closing: 10 / S-100 / S
Torque: 6N.M 2000N.M
Protection: IP67 Grade
Explosion Proof: EX DII BT4 (option)

Related video
Products Recommended
Explosion-proof electric actuators
Electric Actuator
Horizontal pneumatic actuator
Vertical pneumatic actuator
Feedback
Captcha Code
File Description Language Size
Electric Actuator Various options of electric actuators such as switch type, intelligent adjustment type, IP67, explosion-proof level, etc. English 9.6MB
Valve Controller It includes: valve positioner, valve control unit, valve position feedback device English 4.66MB
Self-Control Valve It includes various structure adjustment valves such as angle seat valve, globe valve, single seat valve, V-type ball valve, butterfly valve, etc. English 9.6MB
