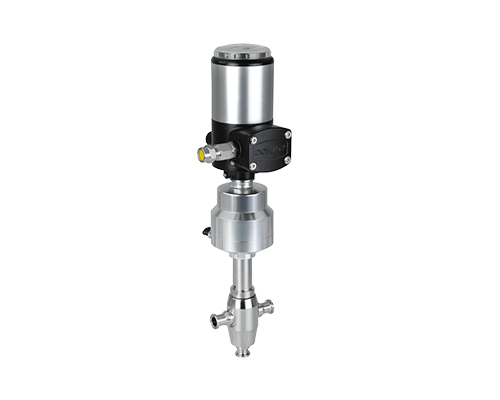

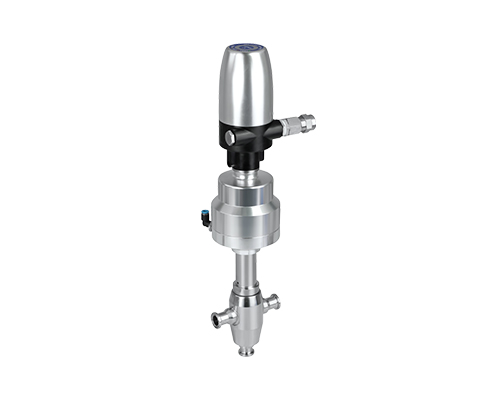

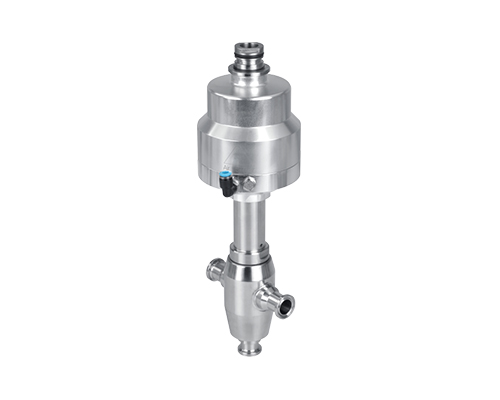

Three way Globe Valve

application

The three way globe valve is mainly used in flow regulation control and reversing valves. This valve is in contact with the medium only in stainless steel and PTFE, with a maximum temperature of 180 ° C and a pressure resistance of up to 20 bar. It can also be used in a vacuum environment. The valve body is designed according to the dead angle, the surface roughness can reach Ra0.4μm, and the valve core seal adopts the embedded design, so it can be used in a wide range of industries, such as pharmaceutical, food and beverage, brewing, chemical and other industrial fields. .

Design Features

◆Specifications: 1/2"-4", DN10-DN80
◆Material: CF8/304, CF8M/316
◆Connection standard: thread, clamp, flange, BSP, BSP, NPT, DIN
◆Working pressure: 8bar (standard) 10bar (optional)
◆Working temperature: 120 ° C (standard) 180 ° C (optional)
