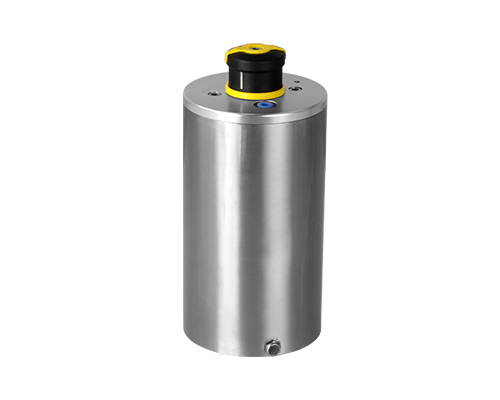

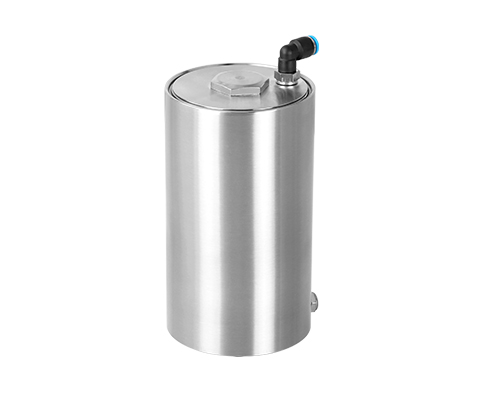

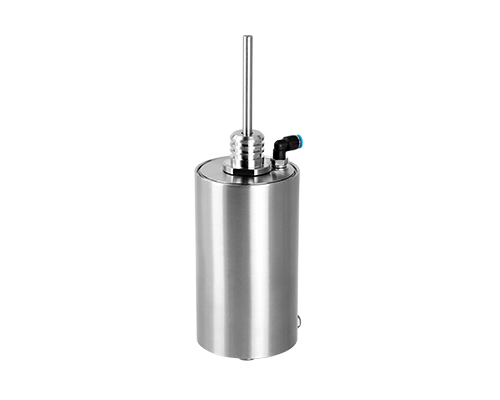

2024 type Stainless steel vertical pneumatic actuator
Torque Output: The Source of Robust Power
The stainless steel vertical actuator delivers an exceptionally high torque output, serving as a reliable and robust power source for driving valves. With its substantial torque capacity, it can effortlessly perform opening and closing operations for various large-diameter valves. Furthermore, the torque output exhibits a linear variation without abrupt changes, ensuring smooth and continuous power delivery during operation. This characteristic effectively prevents potential impact and damage to the valve and pipeline system caused by sudden fluctuations in torque.
2. Action Speed: Efficient Response Where Every Second Counts
In industrial applications, the stainless steel vertical actuator demonstrates rapid opening and closing speeds, capable of completing valve operations within seconds. This high-speed response is critical in various scenarios. In chemical production processes requiring precise flow regulation, it is essential to adjust the fluid flow in pipelines promptly in response to process variations. The actuator can swiftly respond to control signals, enabling rapid valve actuation and precise flow control, thereby ensuring process stability and product quality. In emergency situations such as fires or leaks, it is crucial to immediately shut off the fluid flow to prevent escalation. The actuator’s fast operation allows for valve closure in an extremely short time, contributing to personnel safety and minimizing property damage.
3. Sealing and Durability: Quality Assurance for Long-Term Reliability
To ensure long-term stable operation, stainless steel vertical actuators are designed with enhanced sealing and durability features. They incorporate advanced F4 sealing technology, a material known for its excellent corrosion resistance and superior wear resistance. This ensures long-lasting leak-proof performance, even under continuous use. Additionally, the actuator’s high wear resistance enables it to perform over a million switching cycles, significantly outlasting conventional actuators.
4. Versatile Configuration and Flexible Integration

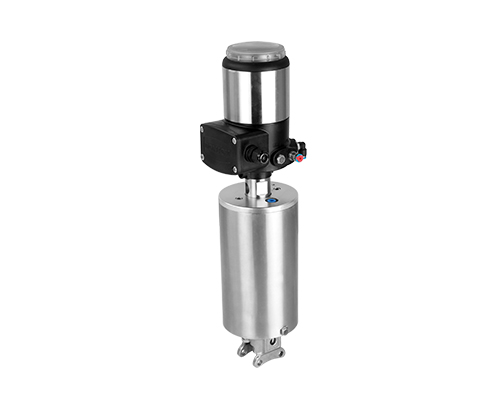

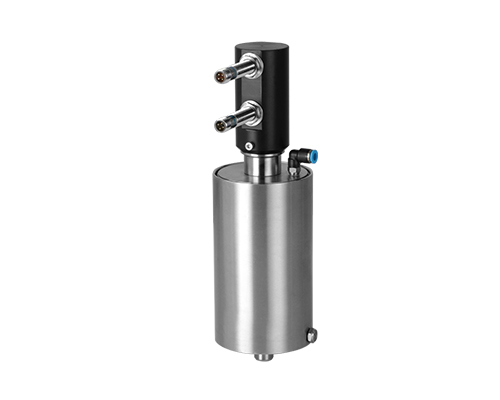

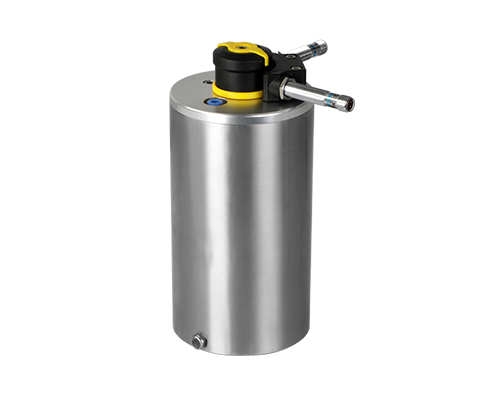

In practical industrial applications, diverse production environments and process requirements necessitate actuators with a wide range of functional capabilities. The 2024 stainless steel vertical pneumatic actuator is specifically designed with this in mind. It offers a comprehensive selection of functional configurations and can be flexibly integrated with the Donjoy controller, feedback module, and positioner series to create customized control solutions.
When paired with the Donjoy controller, the actuator gains intelligent control capabilities. The controller can accurately receive various control signals from the upper computer, such as 4–20 mA analog signals and digital pulse signals, and execute actuator operations according to pre-programmed logic. Whether performing basic on/off control or complex proportional regulation, the controller ensures precise and reliable operation. On automated production lines, the coordinated operation of the controller and actuator enables precise timing of material conveying valve operations, enhancing both production efficiency and product quality.
Technical Specifications
Size Range: 70/85/114/133/168
Operating Temperature: -10℃ to 80℃
Air Supply Pressure: 5-7bar
Air Supply Interface: G1/8(70/85),G1/4(114-168)
Stroke Rang：0°-90°
Torque Range: 15Nm-160Nm
Material: AISI 304/1.4301
Surface Finish: Matte, sandblasted
Compatible Valve Types: Angle stroke type valves (such as butterfly valve , ball valve , seat valve .... )
