Rotor Pump

Mini rotor pump
Mini rotor pump
Mini rotor pump
Mini rotor pump
Mini rotor pump
Mini rotor pump

Mini rotor pump

Design Features

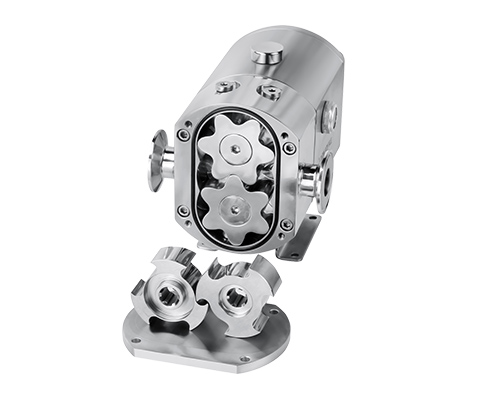

The MINI STU-10 Rotor Pump is a miniature displacement cam rotor pump for wide range of applications for high viscosity and low viscosity material handling. The design features of the pump are small size, low noise, wide speed range, simple maintenance and economy, all-stainless steel design includes gear box and the interior is highly clean, because all-stainless steel appearance is close to no dead angle and can be washed.

Technical specifications

Max flow: 3000 L / h
Max pressure: 12 bar
Speed range: 10-1450 R.P.M
Working temperature (Max Temperature): -40 ° C to 150 ° C
Surface treatment: Ra≤0.6μm; EP=Ra0.4μm
Material: 100% stainless steel, medium contact part 316L
Certification: 3-A-02-11 No.1759; FDA 177.2600; CE-MD/06-42 No .705201402401-00

Related video
Products Recommended
All stainless steel rotor pump
Rotor pump with Full-proof protection cover
Rotor pump with Hopper
Rotor pump with External safety valve
Feedback
Captcha Code
File Description Language Size
Rotor Pump Including MINI STU, TU, STU series, pressure 20bar, flow 90m3, flow 100L / h ... English 9.21MB
High Clean Pump High cleanness includes rotor pump, twin screw pump, centrifugal pump, self-priming pump, homogeneous pump, homogeneous mixing pump, flexible impeller pump, mixer, etc. English 7.83MB
Twin Screw Pump With strong self-priming ability, conveying solid particles, pressure 20bar, speed 3000RPM, flow 100m3 / h; English 6.14MB
Flexible Impeller Pump It is a pump with flexible impeller, which has strong self-priming ability, no damage to particle transportation, and can be transported in forward and reverse directions ... English 4.66MB
