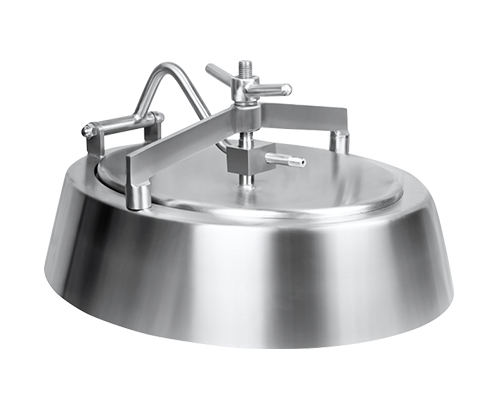

Oval manhole (Elliptical Manhole)
Oval manhole (Elliptical Manhole)
Oval manhole (Elliptical Manhole)

Oval manhole (Elliptical Manhole)

Application

The manhole oval design mainly used in food, wine, beverage, pharmaceutical and other industries on the tank equipment.

Design specifications

◎ Size: 435 * 335,530 * 430,635 * 525
◎ Height: 75,100,120,150
◎ Inward opening manhole cover
◎ Spanner type handle, hand wheel handle
◎ Internal surface: Ra0.8μm-0.5μm
◎ Outer surfaces: Mirror polish,satin finish, sand-blasting
◎ Max. pressure: 3.0bar
◎ Gasket: EPDM, NBR, SILICON, FPM conform toFDA177.2600
◎ Material: AISI304 (1.4301) / 316L (1.4404)
◎ Certification: 3-A-84-02; FDA177.2600
