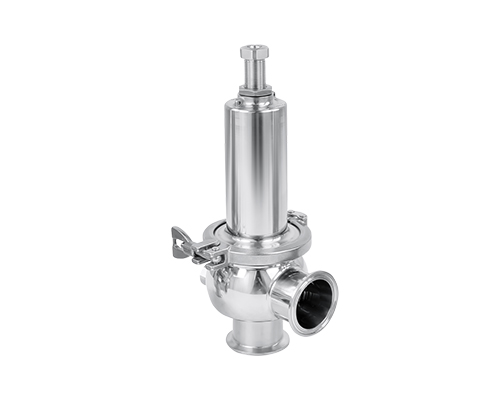

Over flow Safety valve Basic type

Over flow Safety valve Basic type
application
The safety valve is used to protect the pressure through the pipeline, pump, accessories, pool and so on.
The safety valve is designed to be healthy and safe to prevent danger and equipment failure due to pressure.
◆ Sanitary design and fully stainless steel manufacturing, the valve is the best choice for protecting equipment in dairy, food, beverage, pharmaceutical, fine chemical industry.

Operating principle
◆ Under normal operating conditions, the valve remains closed.
The valve is calibrated to a specific pressure by adjusting the spring with the pressure nut.
◆ When the pressure in the pipeline exceeds a specific pressure, the valve opens to allow the fluid to pass through, thereby reducing the pressure in the piping system.

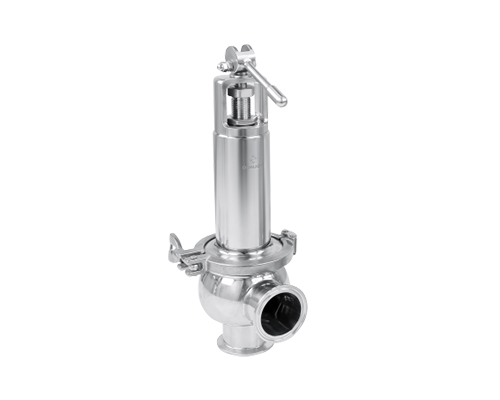

The valve can be with a handle, so as to realize the partial opening of the valve. The cleaning product can flow through the valve while the handle remains open during field cleaning.

Technical specification
◆ Specification: 1"-4",DN25-DN100
◆KV value: 8.5-180m³/h
◆ Maximum temperature: 130℃(EPDM)/266℉
◆ Setting pressure: (0-3bar/0-6bar/6-10bar)
◆ Material: 304/316L
