Angle Seat Valves

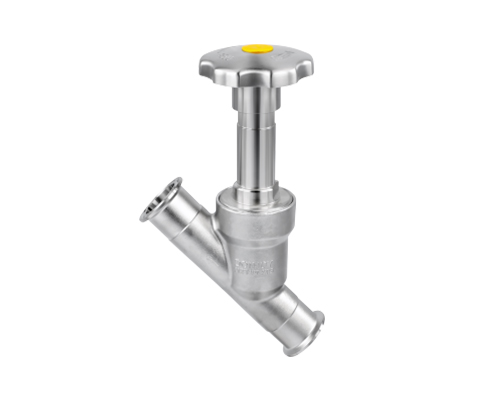

Manual angle seat valves
Manual angle seat valves
Manual angle seat valves

Manual angle seat valves

Application

Angle seat valve is a general switch in the automatic control system which is widely used in printing, dyeing, bleaching, food,washing,chemical, water treatment, pharmacy and other automatic machinery and equipment. It is featured with water hammer protection,noise-free, reliable sealing performance.

Design Features

● Size: 1/2"-2 1/2", DN10-DN65
● Material: CF8/304、CF8M/316
● Connection : Clamp,thread,flange,BSP、BSP、NPT,、DIN
● Pneumatically operated:
    1)Can be configured to position sensor
    2)valve locator (process controller)
    3)Valve position Regulator
    4)MINI C-TOP Control unit
●Manual pneumatic interchangeable
●Working pressure:8bar(standard)     10bar(option)
●Working temperature:120℃(standard)   180℃(option)
