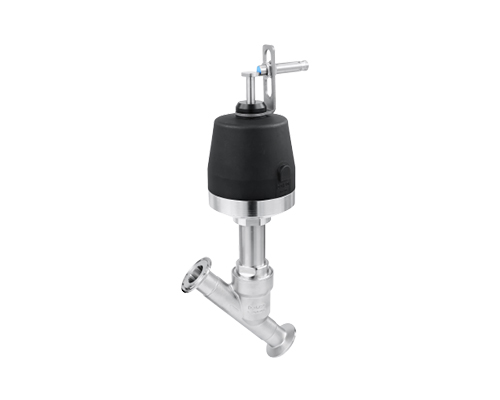

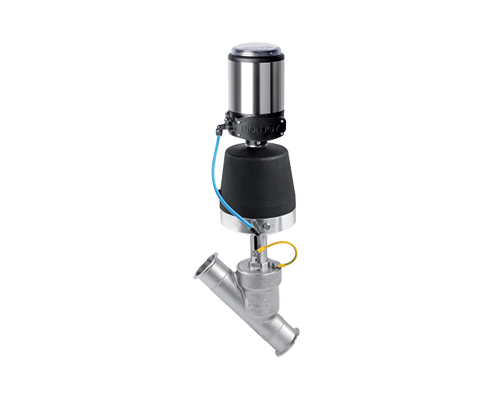

Pneumatic angle seat valve with control unit

Application

Pneumatic angle seat valve with control unit is a general switch in the automatic control system widely used in printing, dyeing, bleaching, food,washing,chemical, water treatment, pharmacy and other automatic machinery and equipment.  It is featured with water hammer protection,noise-free, reliable sealing performance.

Design Features

Size：1/2"-3",DN10-DN80
Material：CF8、CF8M
Connection : Clamp, weld, thread，BSP/BSTP/NPT,DIN,Inch

Control unit

Position feedback, Can be viewed on (Green) off (Red)
Built-in Solenoid valve
Valve opens– green light
Valve closes-red light
The design has inching button (manual design)
Power Supply：DC 24V ±10%
Air supply：M5/Φ4
