Centrifugal Pump

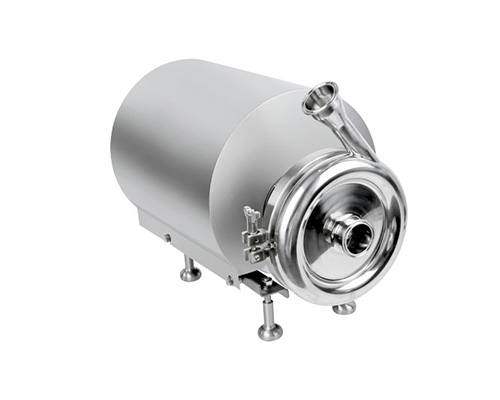

Centrifugal pump CLX
Centrifugal pump CLX
Centrifugal pump CLX
Centrifugal pump CLX
Centrifugal pump CLX
Centrifugal pump CLX
Centrifugal pump CLX

Centrifugal pump CLX

Application

The DJ-CLX series of centrifugal pumps not only optimize the internal structure, impeller design, dead angle treatment, machine seal pressure balance design and the machine seal is completely in the flushing area. We also optimized the external hygiene of the pump to make it absolutely hygienic and reduce the dead angle inside. As there is no dead zone, it is very easy to be cleaned by CIP, SIP sterilization so on. In addition, we have the largest flexibility combination for the DJ-CLX series of pumps. For example, the pump outlet angle can be adjusted from 0° to 360°. The pump cover is clamp connection, so the pump can be maintained easily . The replacement of the seals maintains high efficiency and reduce the high degree of professionalism of the personnel, no special tools are required to complete these. Therefore, the goal of achieving high efficiency, hygiene, high reliability and low cost has made the DJ-CLX series centrifugal pump into a high-performance pump.

Technical specifications

Maximum flow rate Max Flow rate: 120m3/h
Head Head: 70 H/M
Temperature Temperature : -20 ° C to 140 ° C
Power Power : 1.1KW-30KW
Material Material: 304 /316L, 1.4301/1.4404, ASME BPE 316L, 1.4435 BN2 Fe≤0.5%
Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm Mechanical seal: single machine seal, double machine seal Inlet/Outlet Connection: thread, clamp, flange, aseptic method Certification: 3-A-02-10 (NO1579); MD/06/42-EC (NO70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004
