Self-Priming Pump

Self-priming centrifugal pump ZLX
Self-priming centrifugal pump ZLX
Self-priming centrifugal pump ZLX
Self-priming centrifugal pump ZLX
Self-priming centrifugal pump ZLX
Self-priming centrifugal pump ZLX

Self-priming centrifugal pump ZLX

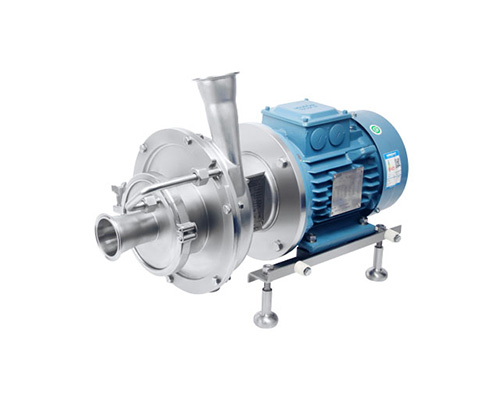

ZLX series is a self-priming centrifugal pump that can be used as a self-priming reflux pump in a CIP system or as a centrifugal pump to deliver a material with a maximum viscosity of 500CP.S (mPas). The pump has the technical advantages of high efficiency, low noise, high cleanliness and easy cleaning of liquid parts. The pump is designed with a leading impeller to reduce the necessary cavitation allowance of the pump. Self-priming centrifugal pump is suitable for food processing, pharmaceutical and chemical industries. It is designed for pumping materials containing air or gas. Can be used in negative inhalation with priority sucking and filtering equipment.

Technical specifications

Maximum flow rate Max Flow rate: 70m3/h
Maximum head Max Head: 70 H/M
Maximum temperature Max temperature : -20 ° C to 150 ° C
Material Material: 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5%
Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
Mechanical seal: single machine seal, double machine seal
Inlet/Outlet Connections: Thread, Clamp, Flange, Aseptic Flange
Certification: 3-A-02-10 (N.O.1579); MD/06/42-EC (N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004;

Related video
Products Recommended
Liquid ring self-priming pump CIP-L
Liquid circulate self-priming pump CIP-U
Self-priming centrifugal pump ZLX
Captcha Code
File Description Language Size
Liquid Ring Self-priming Pump-CIP CIP is a liquid ring self-priming pump with a maximum suction stroke of 8 meters, a maximum flow of 40m3, and a maximum pressure of 46 meters ... English 6.5MB
Self-priming Centrifugal Pump-ZLX ZLX is a self-priming centrifugal pump. It has both a centrifugal pump and a self-priming pump ... English 6.5MB
Centrifugal Pump-LX LX, CLX, SLX, SCLX, KLX, series is a fully open impeller, high clean centrifugal pump ... English 11.95MB
Centrifugal Pump-DLX DLX is a sanitary multi-stage centrifugal pump with a maximum head of 280 meters and a maximum flow of 80m3 ... English 4.57MB
Centrifugal Pump-MLX MLX is a large flow centrifugal pump with a maximum flow of 2000m3 / h and a maximum head of 4O meters. English 4.02MB
Centrifugal Pump-BS BS is a closed impeller centrifugal pump with a maximum flow of 60m3 and a maximum head of 40 meters. English 3.86MB
