Self-Priming Pump

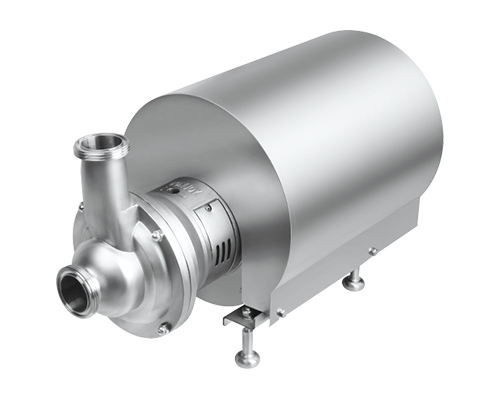

Liquid ring self-priming pump CIP-L
Liquid ring self-priming pump CIP-L
Liquid ring self-priming pump CIP-L
Liquid ring self-priming pump CIP-L

Liquid ring self-priming pump CIP-L

Application

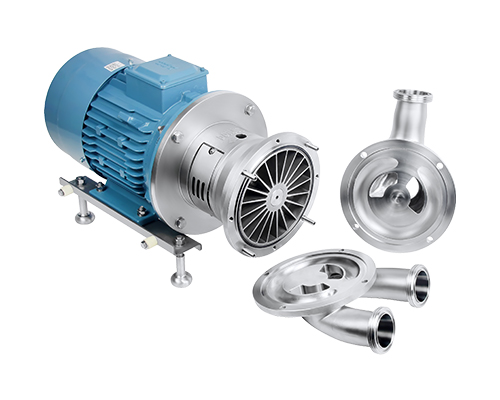

DJ-CIP-L series self-priming pump not only optimizes the internal structure, impeller design, dead angle treatment, machine seal pressure balance design and the machine seal is completely in the flushing area, but also optimized the external hygiene of the pump to make it more hygienic and reduce the dead angle inside. Because there is no dead zone, it is very easy to be cleaned by CIP, SIP sterilization and so on. In addition, we have maintained the most flexible combination of DJ-CIP series pumps. For example, the pump outlet angle can be adjusted from 0° to 135°, It keeps the pump maintenance and maintenance and machine seal replacement efficient. The requirement for a high degree of professionalism is reduced, and these do not require special tools. Therefore, the goal of achieving high efficiency, hygiene, high reliability and low cost is to make the DJ-CIP series pump into high performance self-priming pump.

Technical specifications

Maximum flow rate Max Flow rate: 40m3/h
Maximum head Max Head: 42 H/M
Maximum suction Max suction: 8 / M
Temperature: -20 ° C to 130 ° C Temperature: -20 ° C to 130 ° C
Power power :1.5-15KW
Material Material: 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5%
Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
Machine seal: single machine seal, double machine seal
Inlet/Outlet Connection: Thread, Clamp, Flange, Aseptic Flange
Certification: 3-A-02-10 (N.O.1579); MD/06/42-EC (N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004;

Related video
Products Recommended
Liquid ring self-priming pump CIP-L
Liquid circulate self-priming pump CIP-U
Self-priming centrifugal pump ZLX
Feedback
Captcha Code
File Description Language Size
Liquid Ring Self-priming Pump-CIP CIP is a liquid ring self-priming pump with a maximum suction stroke of 8 meters, a maximum flow of 40m3, and a maximum pressure of 46 meters ... English 6.5MB
Self-priming Centrifugal Pump-ZLX ZLX is a self-priming centrifugal pump. It has both a centrifugal pump and a self-priming pump ... English 6.5MB
Centrifugal Pump-LX LX, CLX, SLX, SCLX, KLX, series is a fully open impeller, high clean centrifugal pump ... English 11.95MB
Centrifugal Pump-DLX DLX is a sanitary multi-stage centrifugal pump with a maximum head of 280 meters and a maximum flow of 80m3 ... English 4.57MB
Centrifugal Pump-MLX MLX is a large flow centrifugal pump with a maximum flow of 2000m3 / h and a maximum head of 4O meters. English 4.02MB
Centrifugal Pump-BS BS is a closed impeller centrifugal pump with a maximum flow of 60m3 and a maximum head of 40 meters. English 3.86MB
